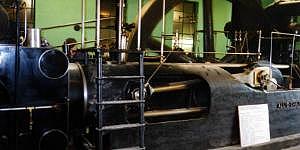

130 ton steam engine

Stationary Steam

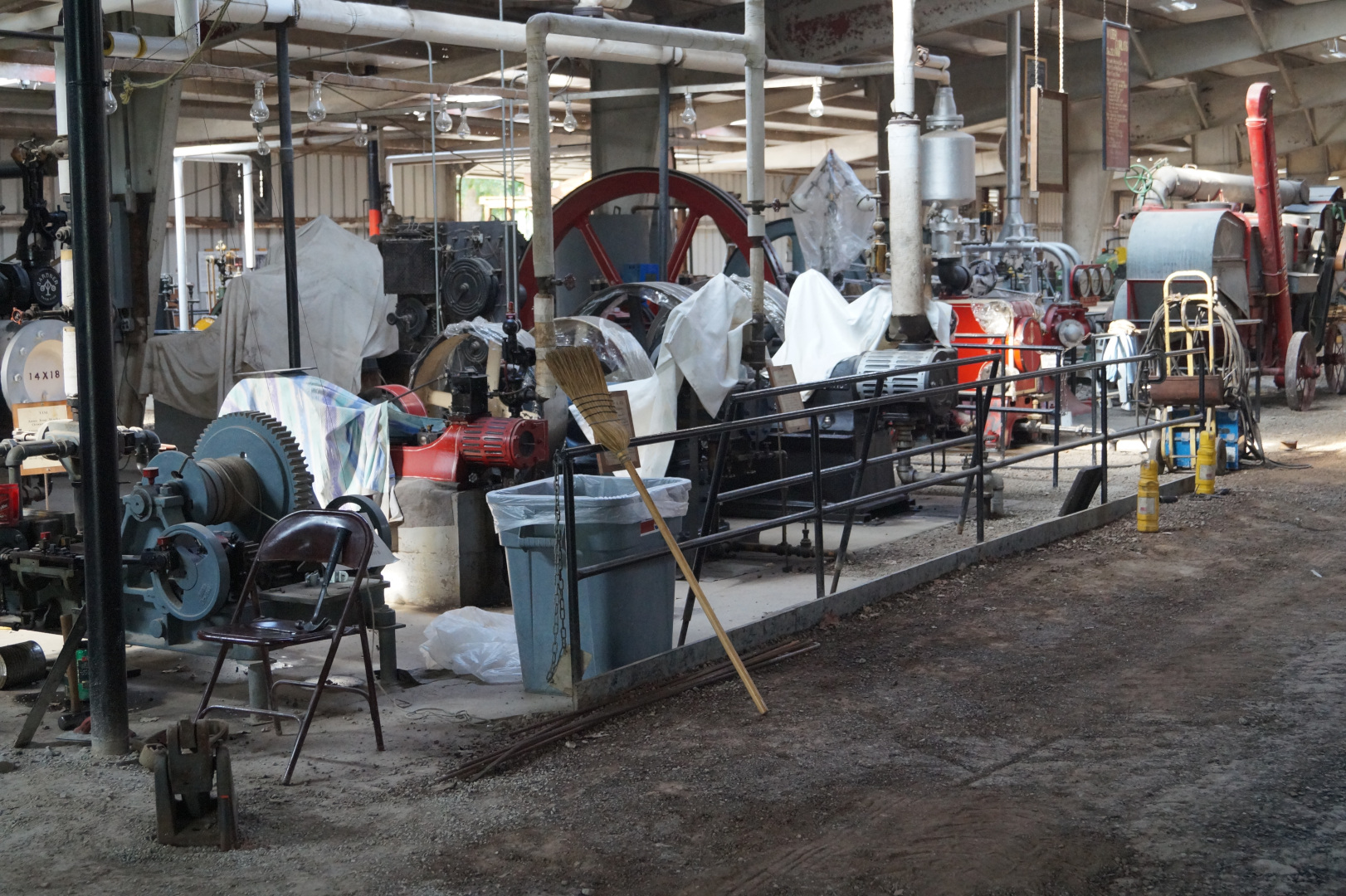

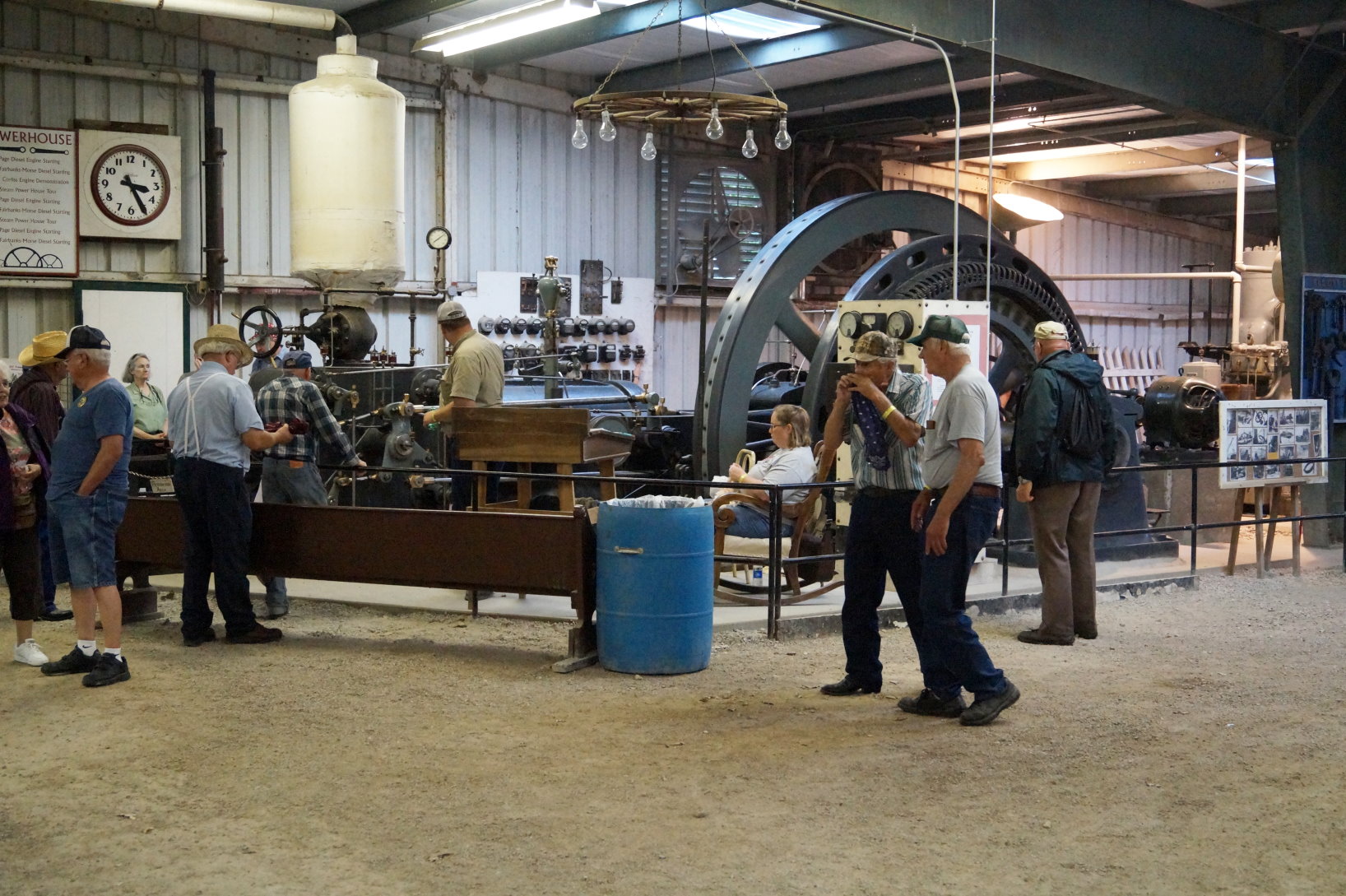

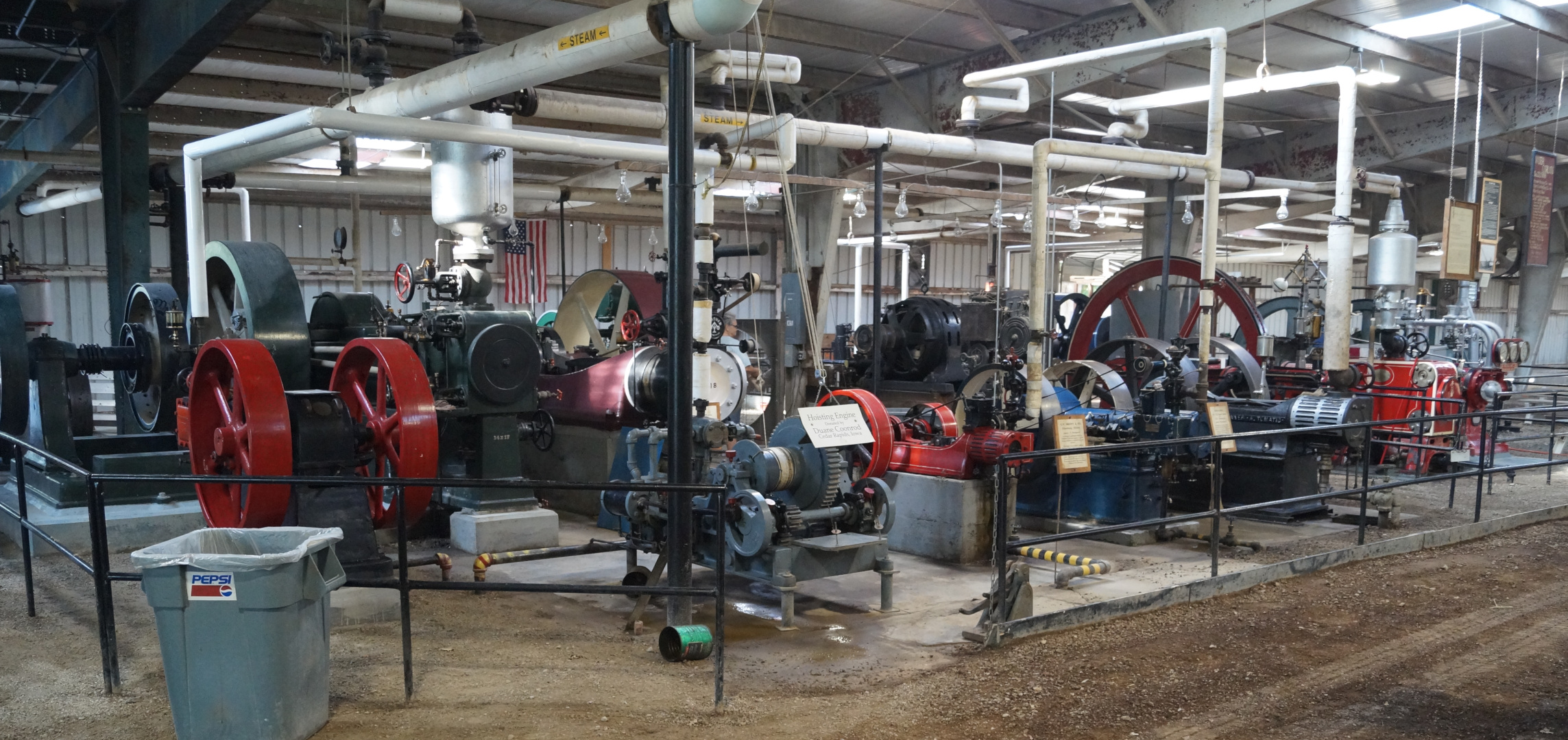

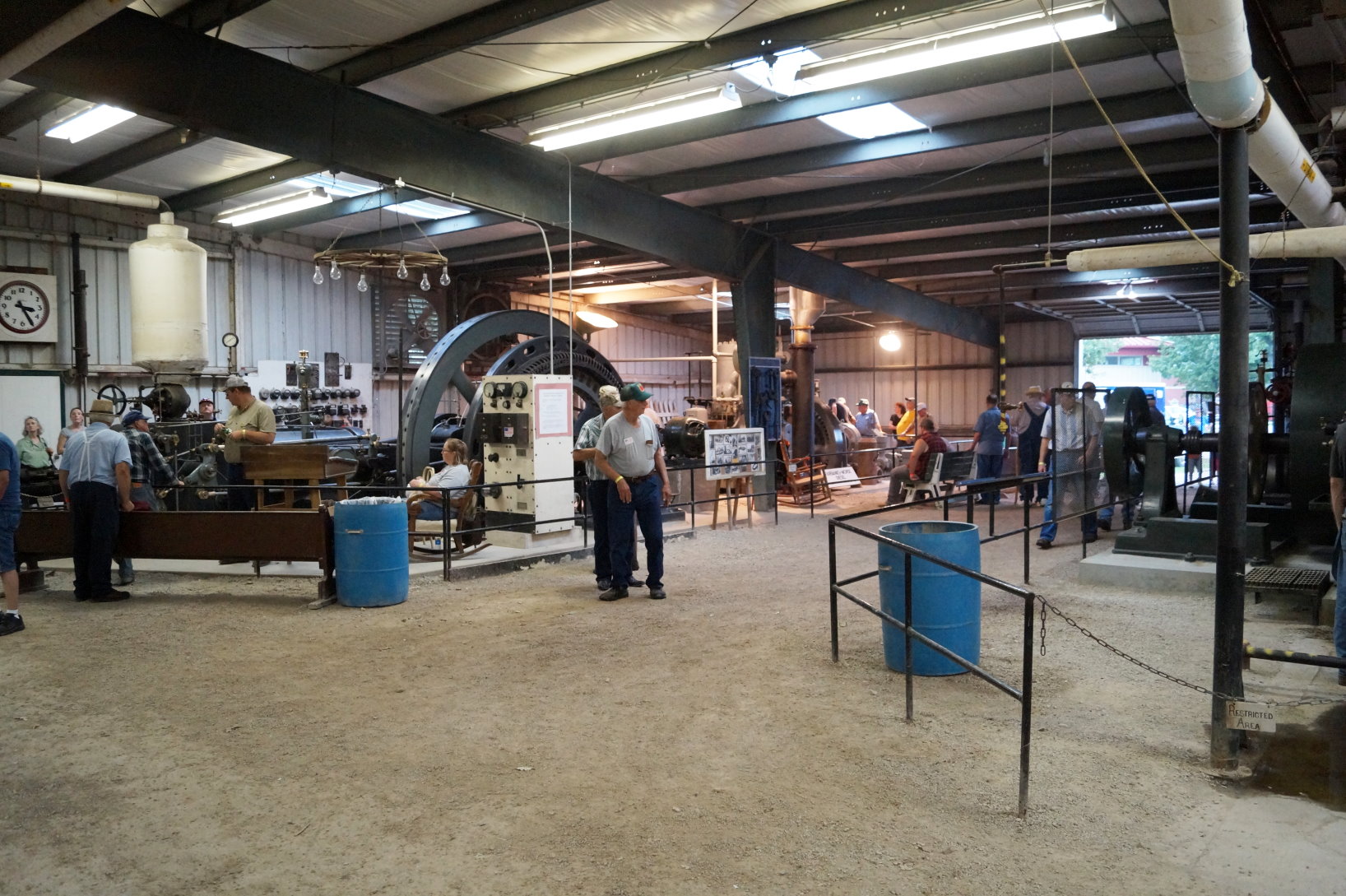

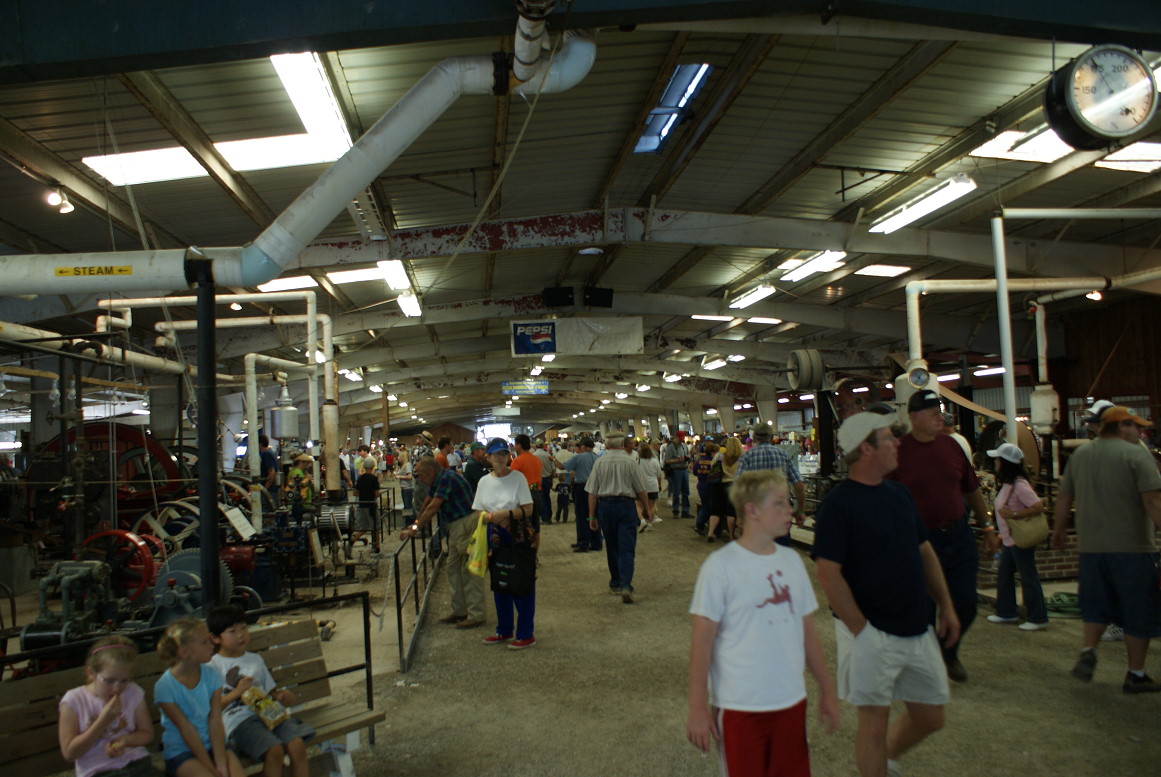

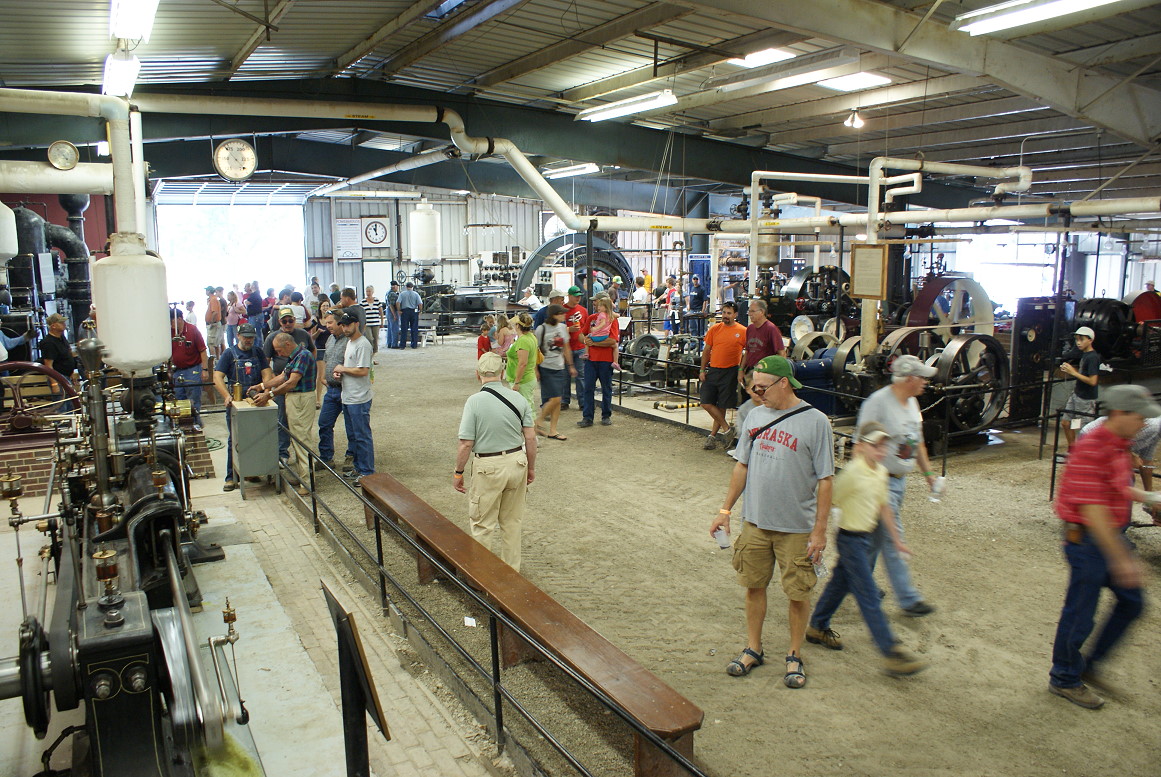

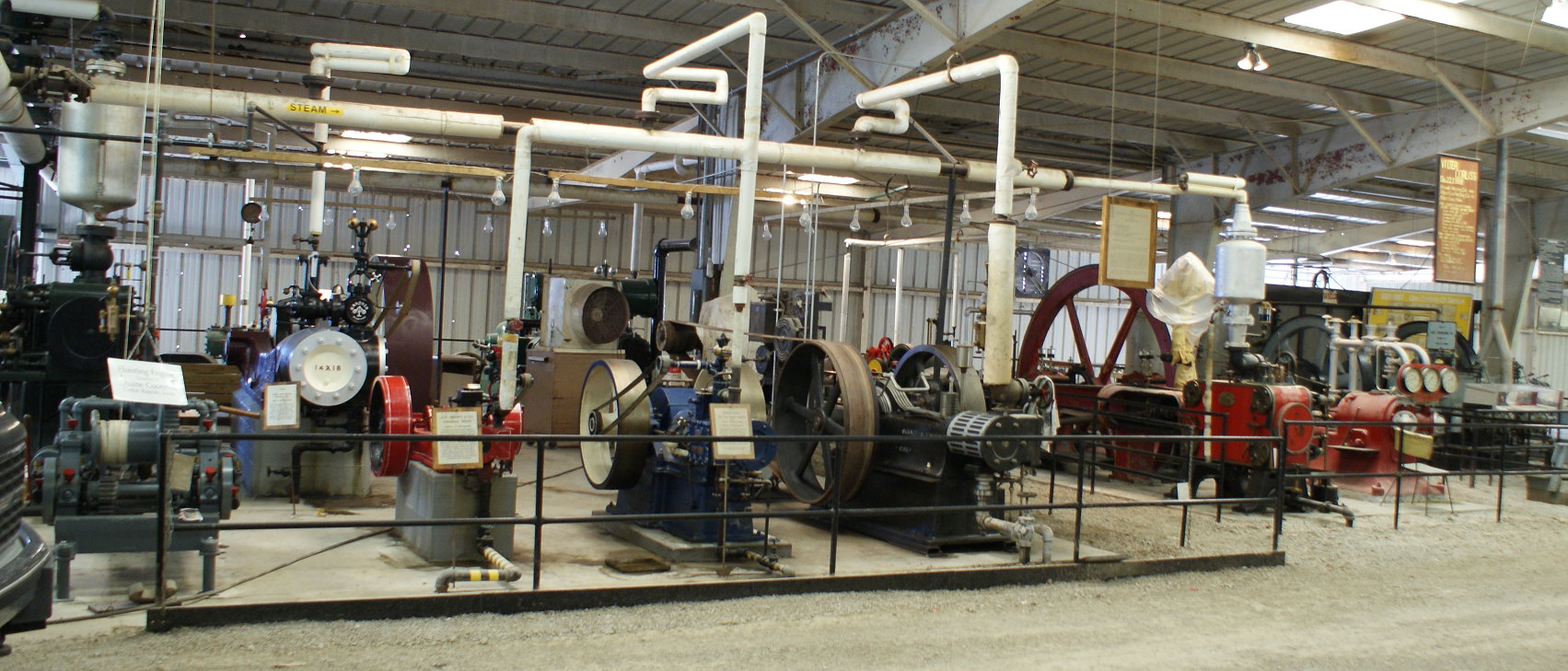

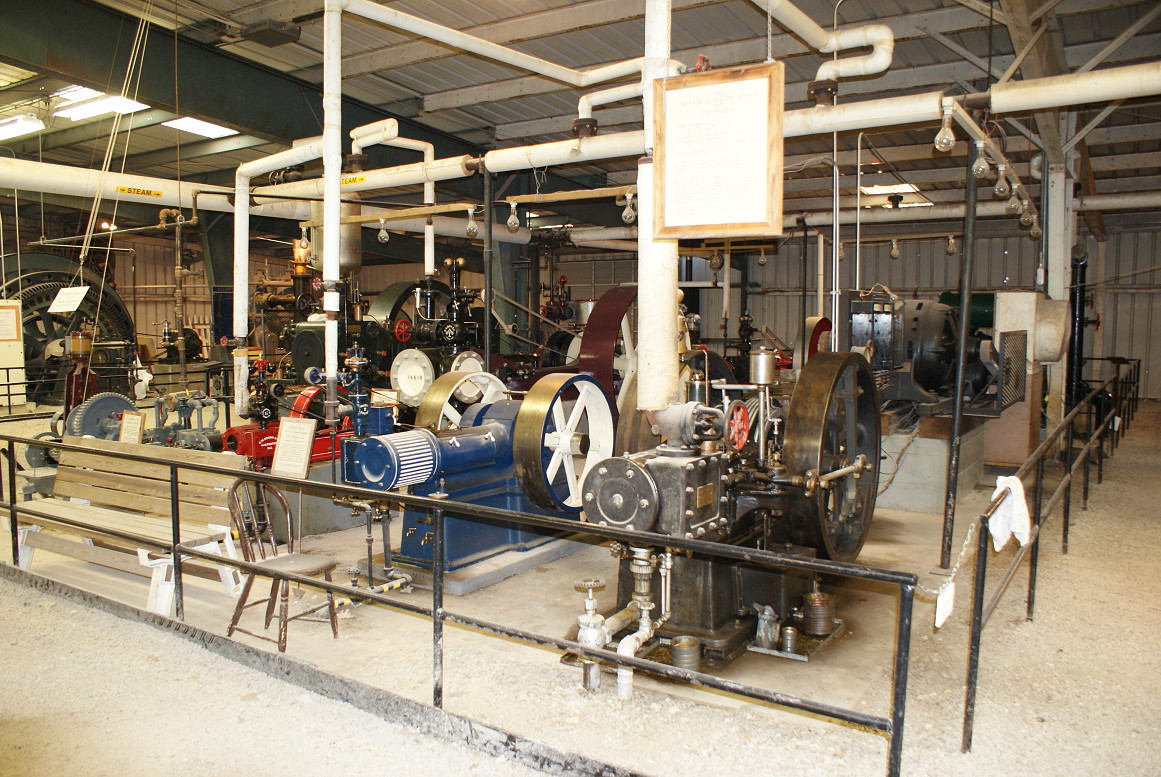

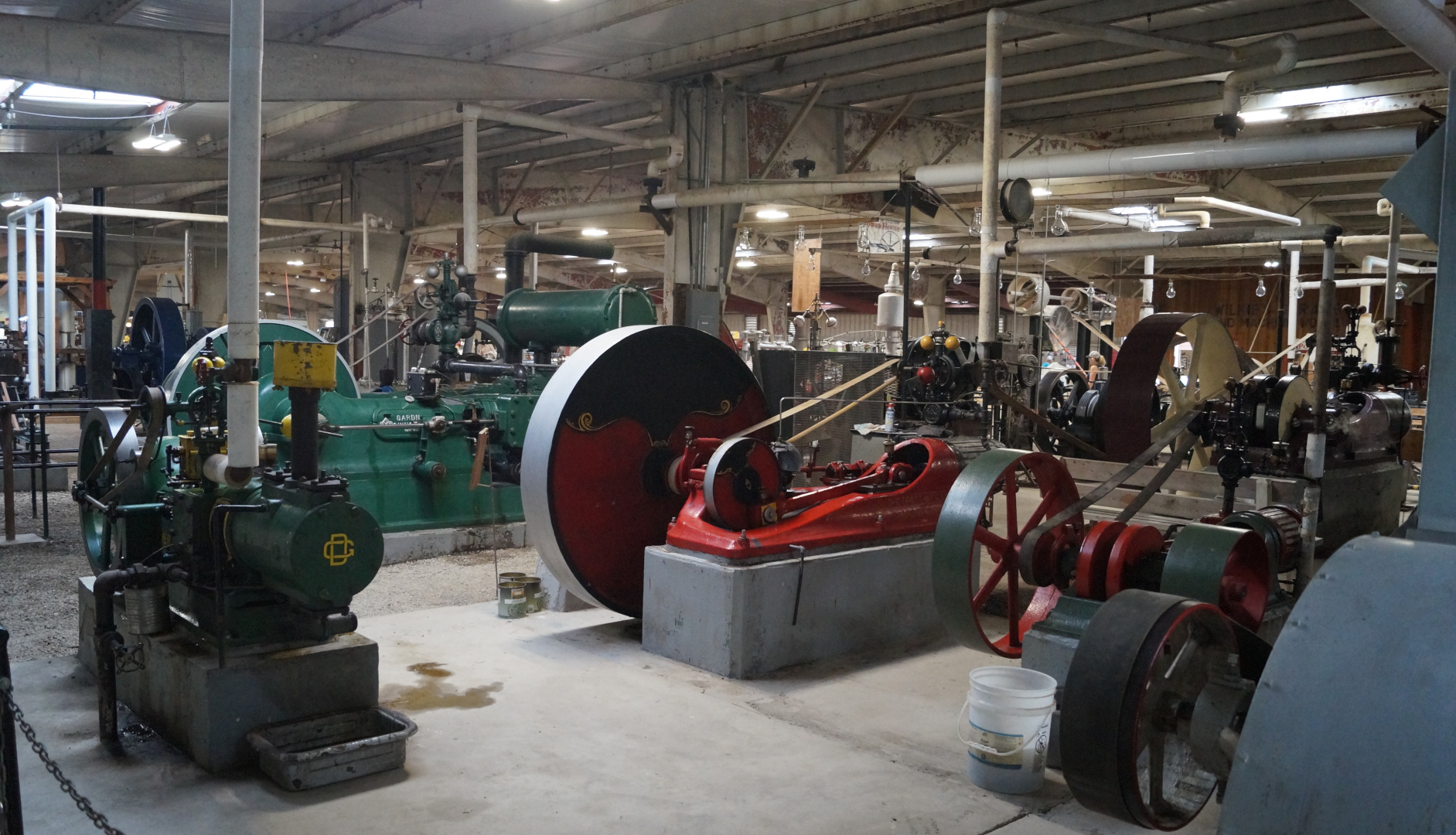

     Pictured here are the three biggest stationary steam
engines at the reunion.  They are located at the east end
of Exhibit Hall A along with many more steam engines of
various sizes.  Don't miss the demonstration on how they
work.

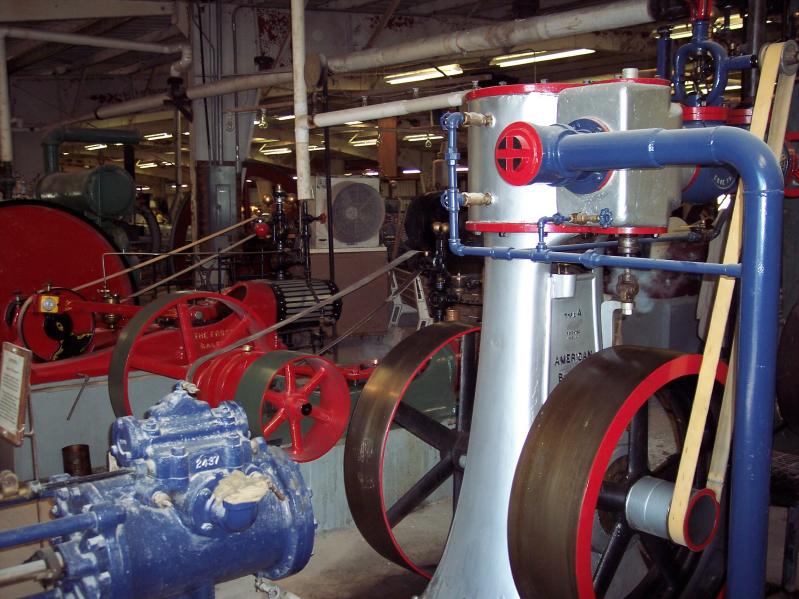

learn more about Hall A

east end

exhibit

Hall A

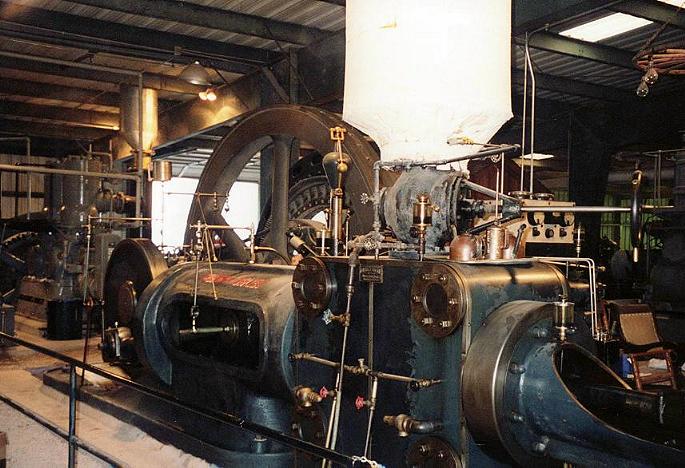

44 in. bore cylinder

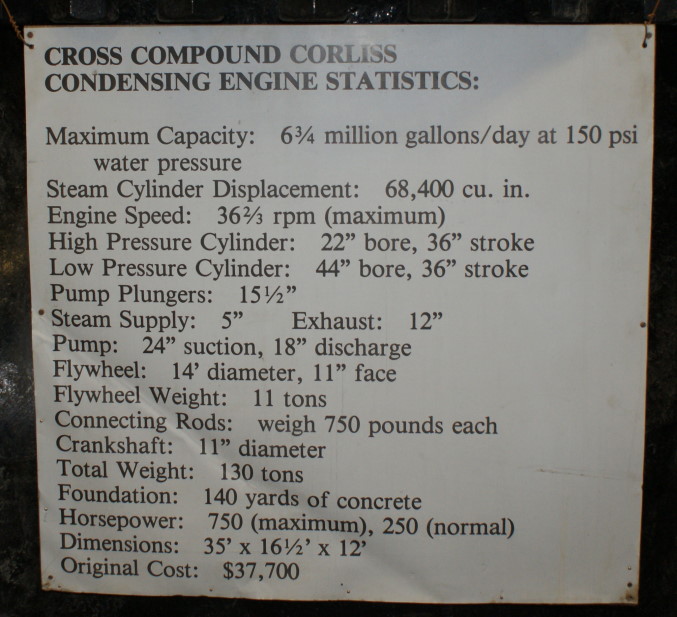

engine specs

Allis Chalmers

Cross Compound Corliss

750 H.P.

44 in. bore cylinder
14 feet diameter 11 ton flywheel

36 rpm

130 tons

water pump

44 in. bore cylinder left 22 in. bore cylinder right
ask about the engines

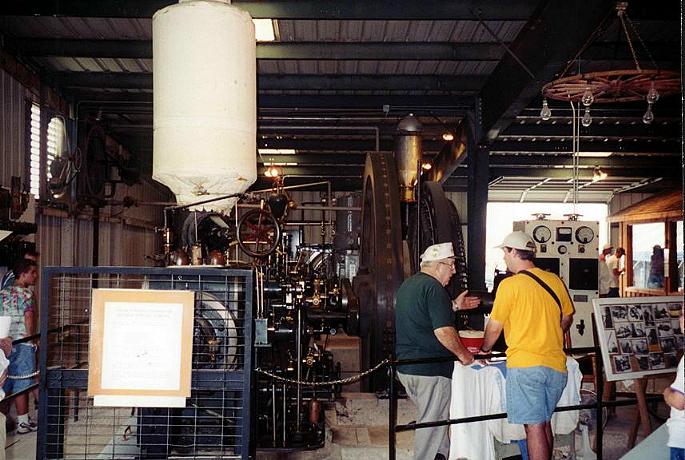

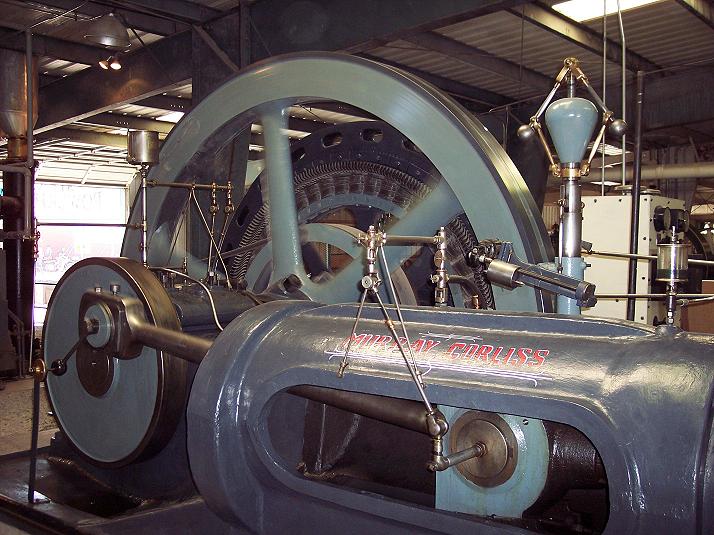

Murray Corliss

1920

600 H.P. at 150 rpm

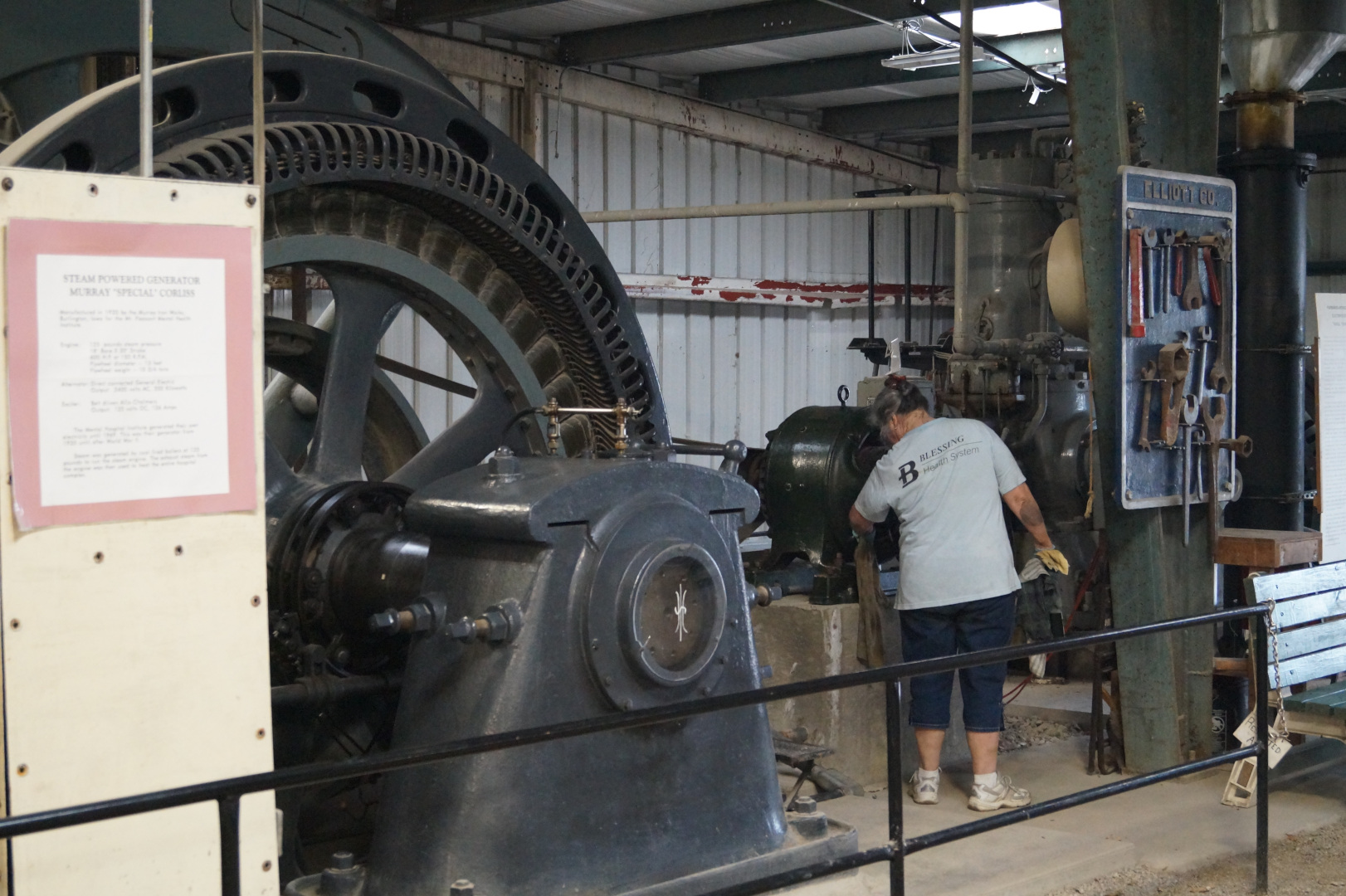

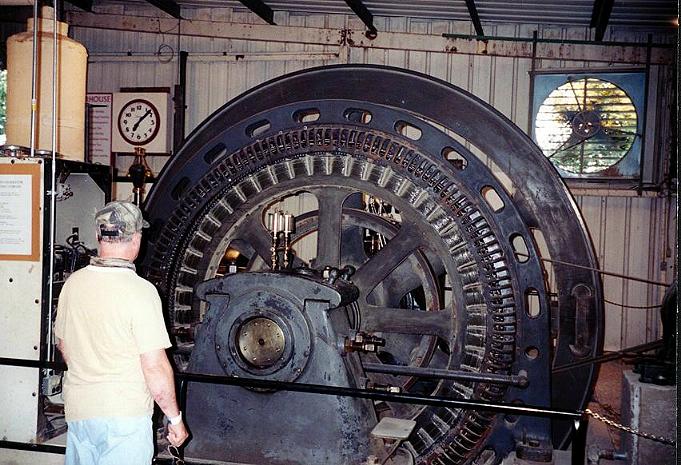

alternator
picture with sound
18 in bore cylinder

18" bore 30" stroke

2,400 volts AC

350 Kilowatt

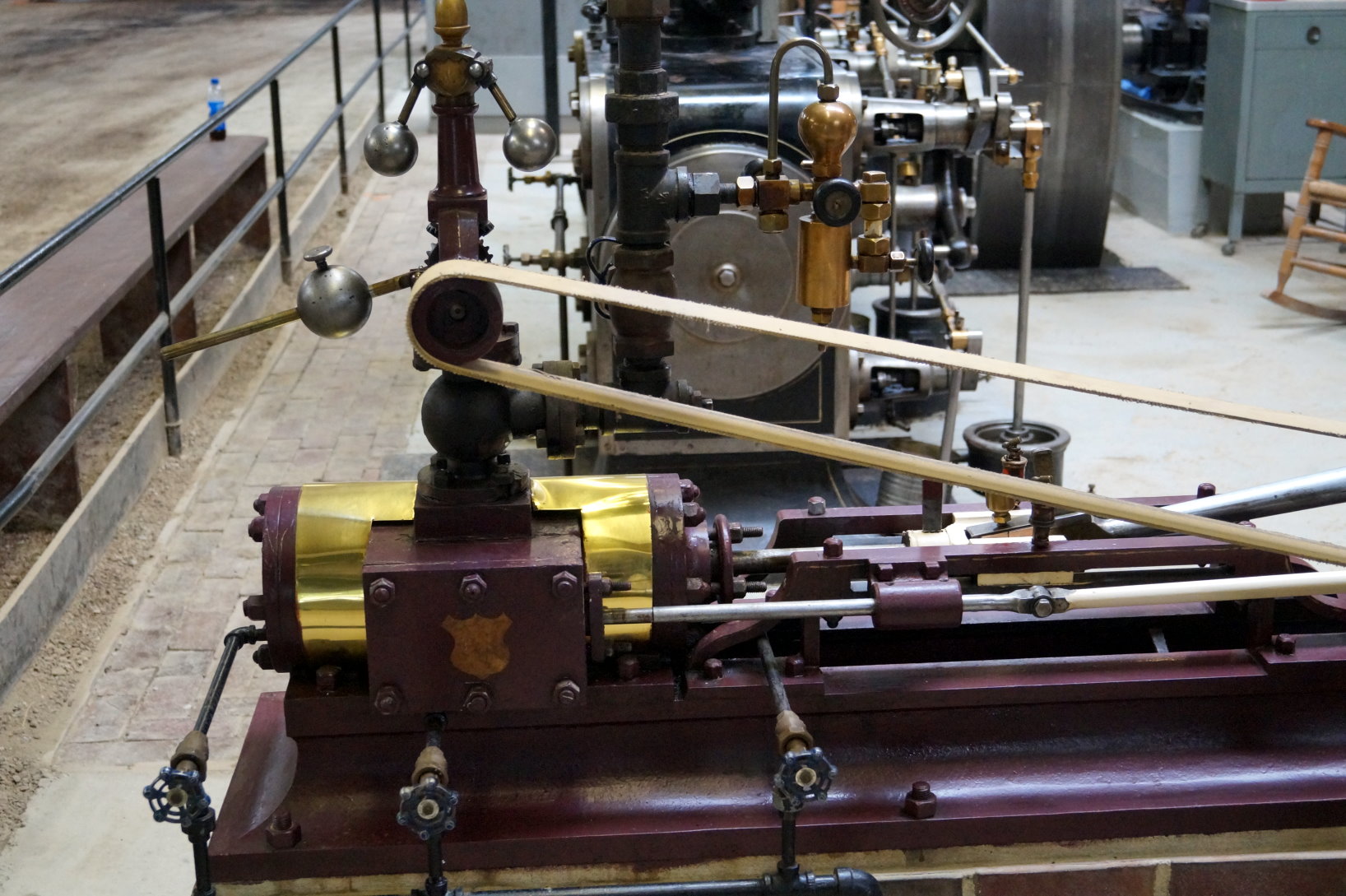

corliss valve system

Murray Corliss

1903

125 H.P. at 110 rpm

picture with sound

14" bore 36" stroke

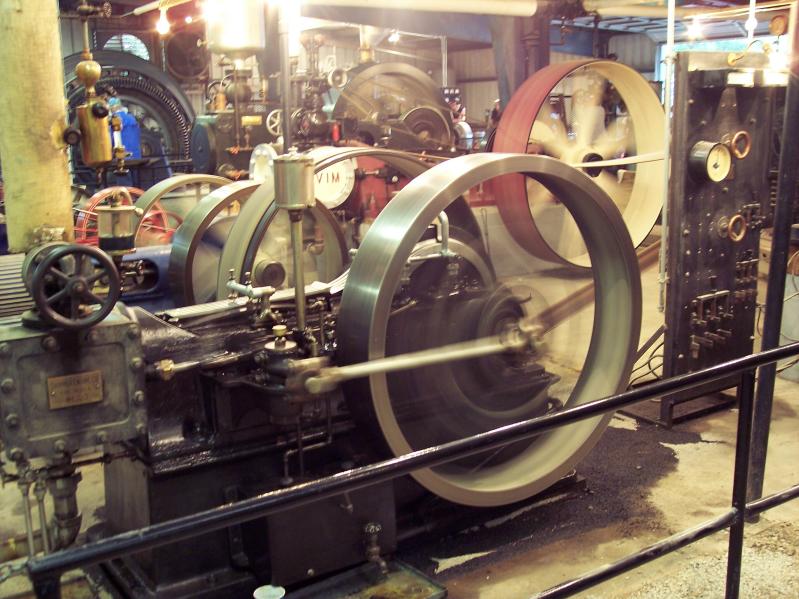

this engine is used

for demonstrations

Vilter corliss

ammonia compressor

14" bore 30" stroke

Chuse corliss

non releasing

14" bore 17" stroke

picture with sound

Other Pictures
video clip 1.2 meg
